Berhampore Townhouse - May 2022, Revit

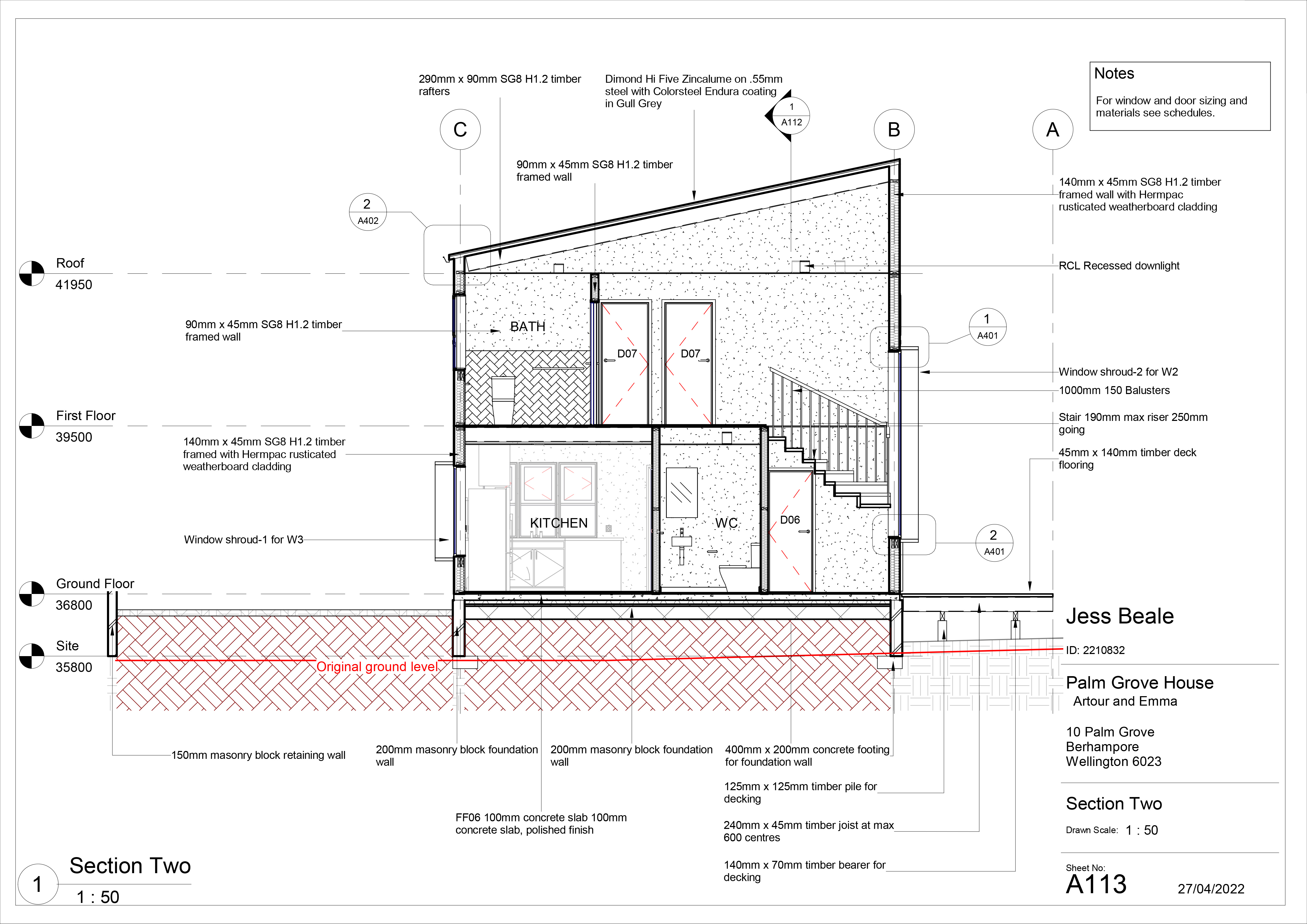

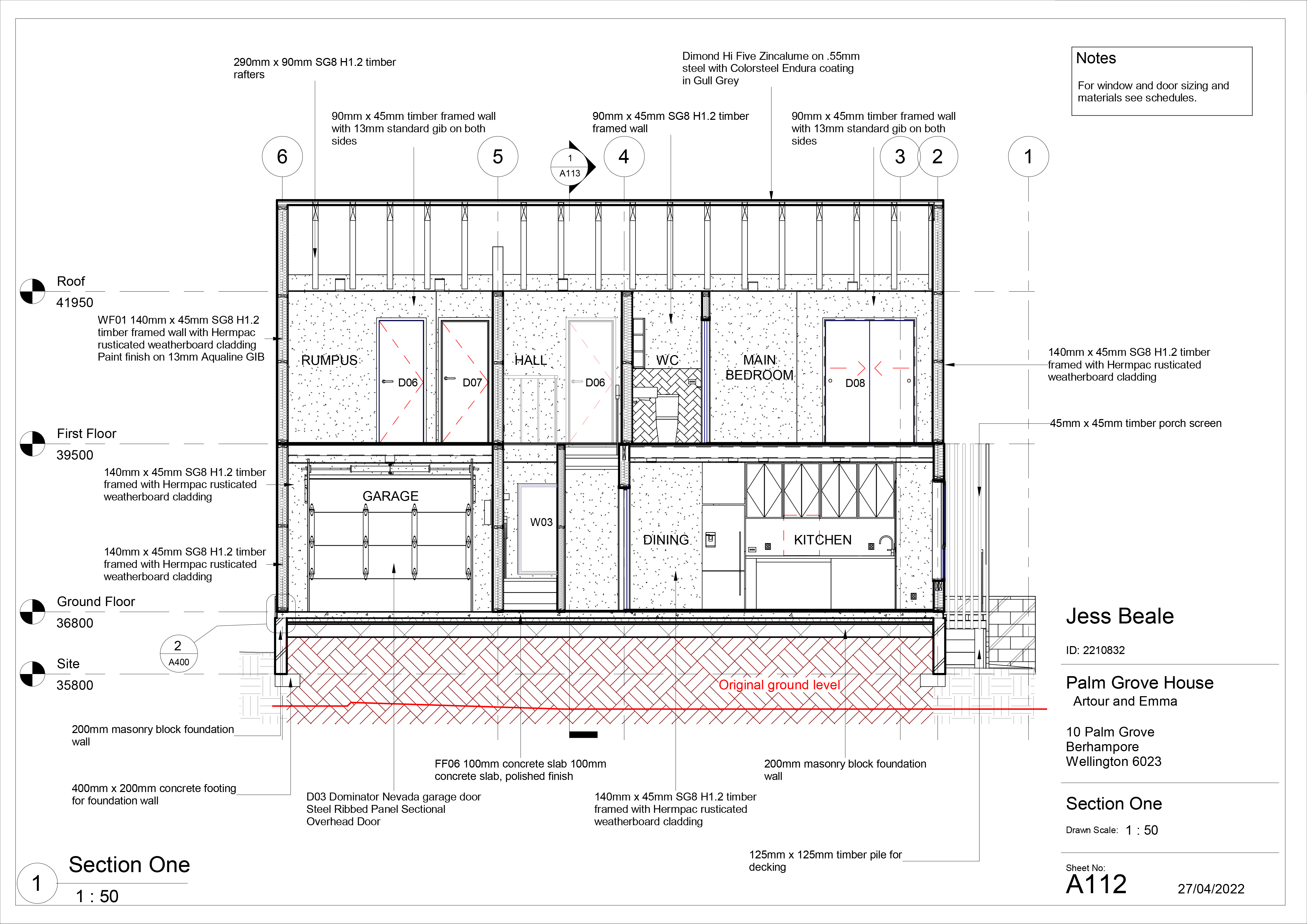

The Berhampore Townhouse project was an exercise in accurately modelling a timber framed building in Revit.

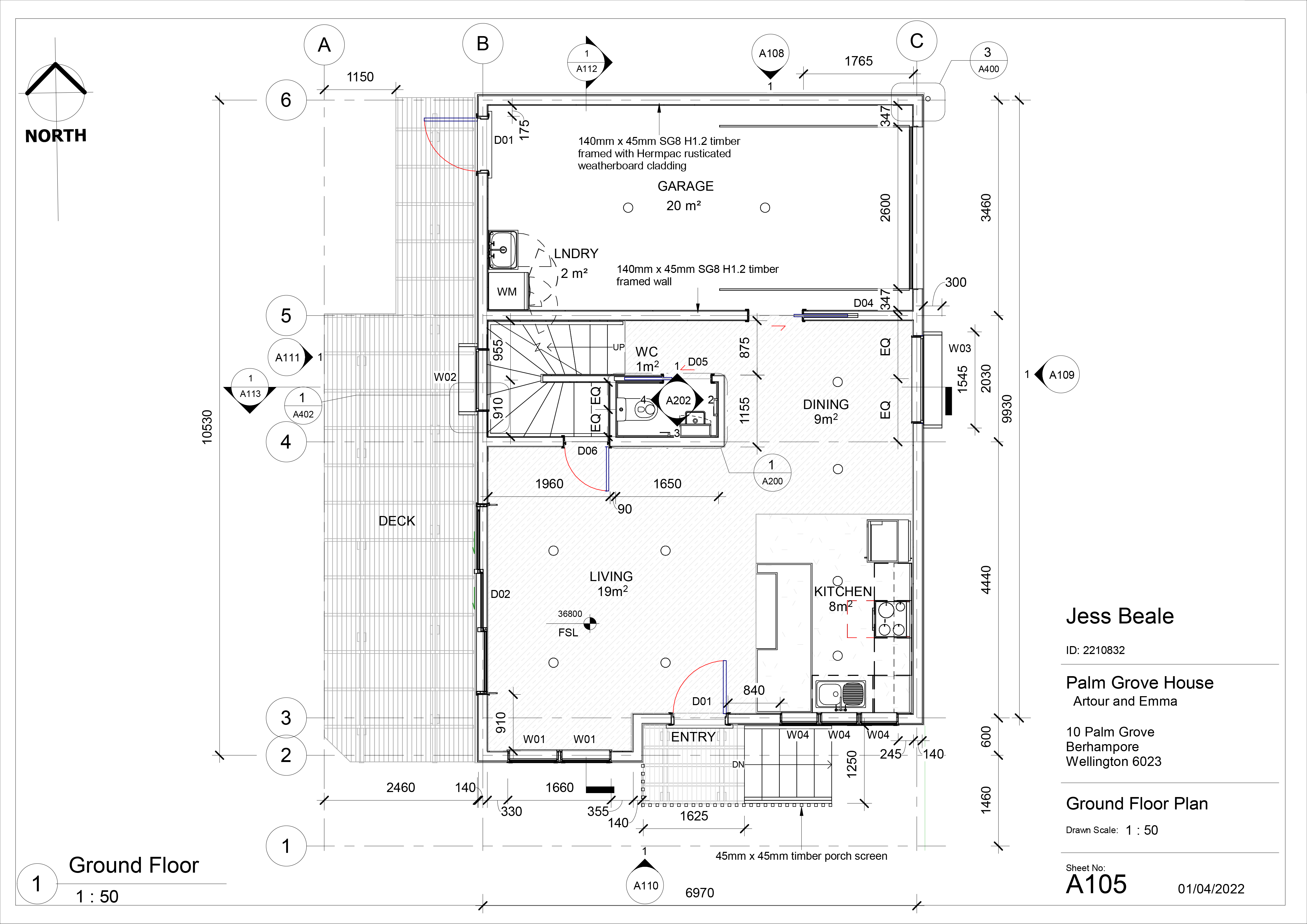

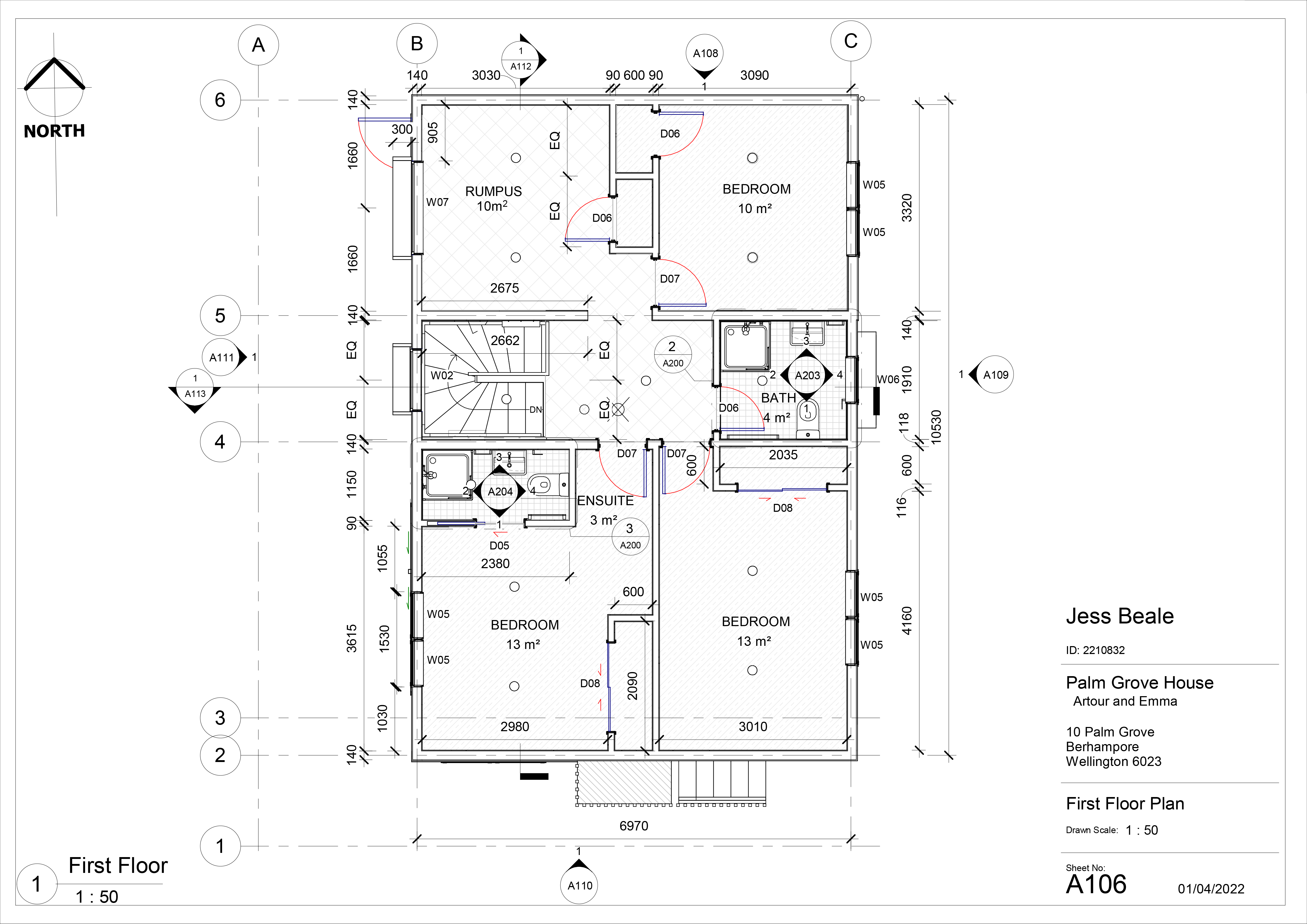

The house is a two storey, three bedroom home with an internal access garage and external decking.

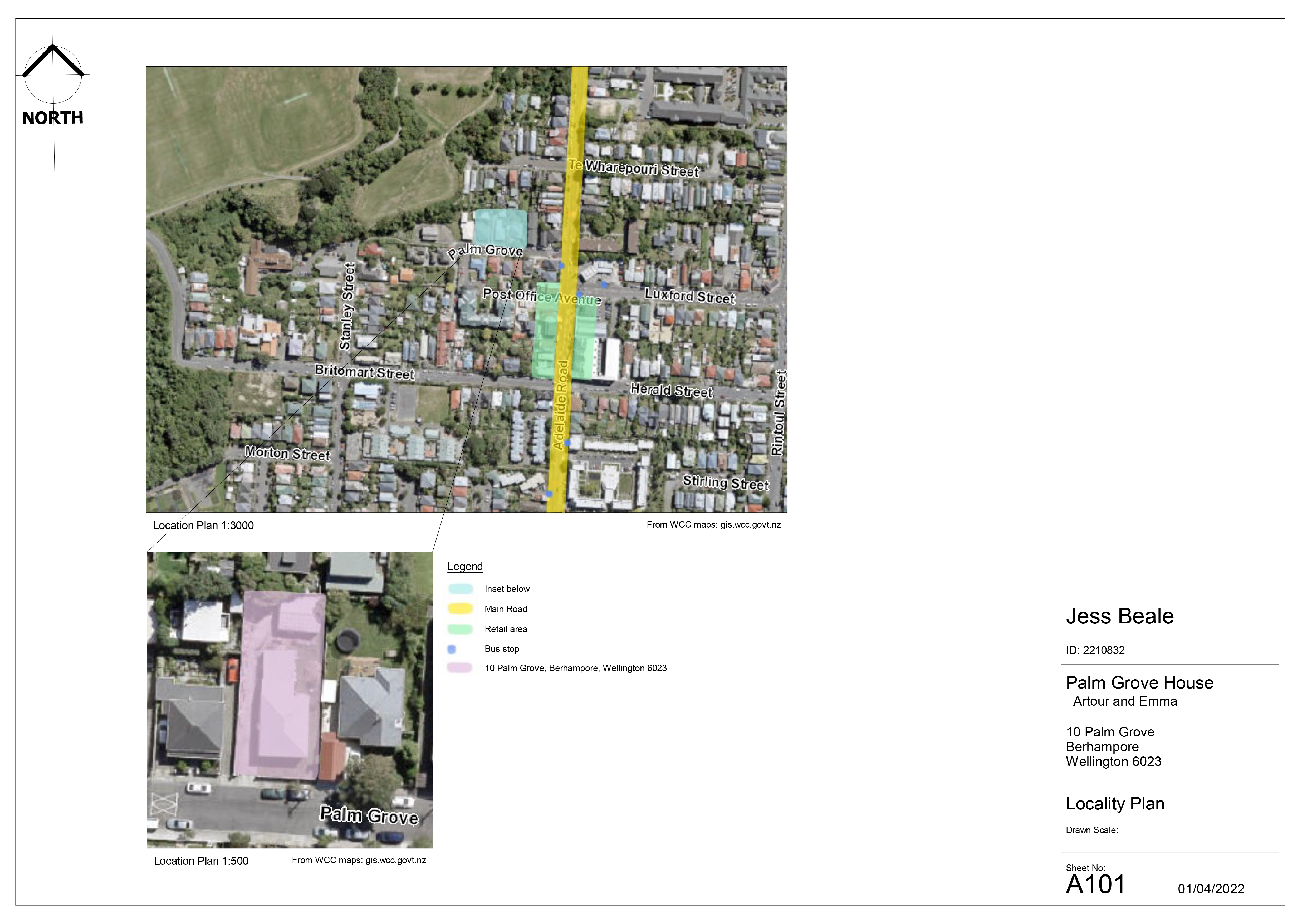

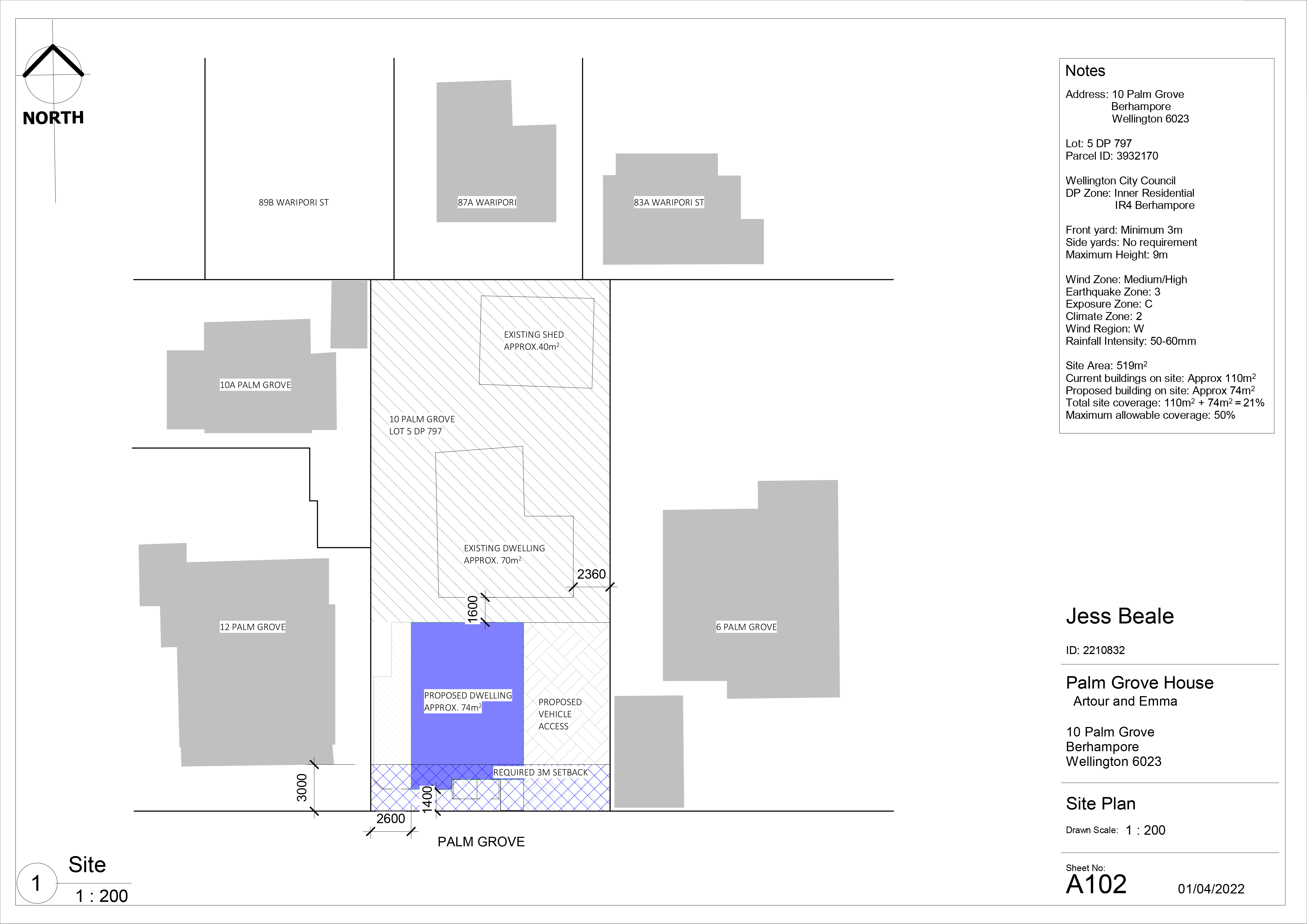

The house is intended to be placed at the front of a section in Berhampore, in front of an existing house.
